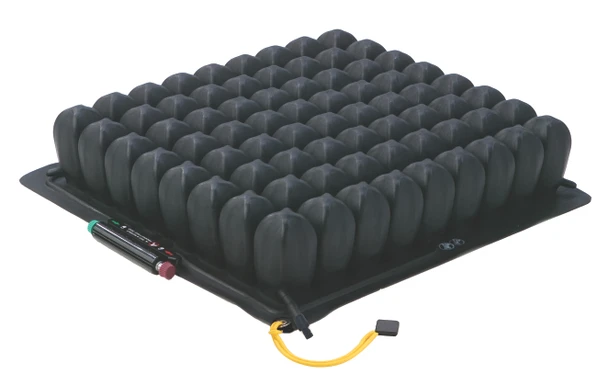

ROHO Quadtro Select Mid Profile Cushion

ROHO Quadtro Select Mid Profile Cushion

The ROHO QUADTRO SELECT Mid Profile Cushion combines adjustable air-cell support with a four-compartment design for pressure redistribution, seated stability, and positioning. Its flexible, interconnected air cells conform to the seated surface and respond to changes in movement and weight distribution throughout the day.

The Mid Profile cushion uses 3.25-inch air cells, providing a balance between the deeper immersion of the High Profile model and the lower seat height of the Low Profile version. This intermediate profile makes it a practical option for wheelchair seating arrangements that require adjustable air support without the full height of a High Profile cushion.

Located at the front of the cushion, the color-coded ISOFLO Memory Control manages airflow between four separate sections. When the control is open, air moves freely throughout the cushion for inflation and adjustment. Once the desired position is established, the control can be closed to contain air within each compartment, helping maintain front-to-back and side-to-side stability.

The cushion’s inflation level can be adjusted using a hand pump. A removable cover protects the air-cell surface while allowing the cushion to respond and conform as intended. Multiple width and depth combinations are available to accommodate a range of wheelchair seat dimensions.

Key Features

• Four Adjustable Air Compartments: The cushion is divided into four sections that can retain different amounts of air. This design provides greater control over air distribution than a standard single-compartment cushion.
• ISOFLO Memory Control: The front-mounted ISOFLO control opens or closes airflow between the cushion’s four compartments. The green setting opens the compartments for adjustment, while the red setting locks air within the individual sections.
• 3.25-Inch Mid Profile Air Cells: The Mid Profile model features approximately 3.25-inch air cells. It offers more immersion than the 2.25-inch Low Profile model while maintaining a lower overall height than the 4.25-inch High Profile version.
• Adjustable Inflation: Air can be added or removed using the included hand pump, allowing the cushion to be adjusted according to the wheelchair seating configuration and manufacturer setup instructions.
• Pressure Redistribution: Interconnected air cells allow the seated surface to immerse into the cushion while distributing forces across a broader contact area.
• Shape-Fitting Support: Flexible air cells adapt to body contours and respond as seated position and weight distribution change.
• Pelvic Stability and Positioning: The four-compartment design can be configured to help manage side-to-side and front-to-back movement while supporting seated alignment.
• Lightweight Construction: The cushion is lightweight and can be removed from the wheelchair for adjustment, cleaning, transport, or inspection. Product weight varies according to the selected cushion size.
• Washable and Repairable: The neoprene cushion can be cleaned with soap and water according to the manufacturer’s instructions. Small, repairable punctures may be patched using an approved ROHO repair kit.
• Multiple Size Options: The QUADTRO SELECT Mid Profile Cushion is manufactured in multiple width and depth combinations for use with different wheelchair seat sizes.

Specifications

Brand: ROHO

Manufacturer: Permobil

Product Type: Adjustable air-cell wheelchair cushion

Product Series: SELECT Series

Profile: Mid Profile

Air-Cell Height: Approximately 3.25 inches when unloaded

Cushion Design: Interconnected air cells

Number of Compartments: Four

Adjustment System: ISOFLO Memory Control

Cushion Material: Durable neoprene

Cover Options: Two-way stretch or heavy-duty cover, depending on configuration

Manufacturer Width Range: Approximately 10 to 27 inches

Manufacturer Depth Range: Approximately 10 to 25 inches

Product Weight: Varies by selected size; approximately 3 pounds for the QS99MPC reference size

Inflation Method: Manual adjustment with a compatible ROHO hand pump

Cleaning: Cushion may be cleaned with soap and water according to the operation manual

HCPCS Classification: E2624 or E2625, depending on size and configuration

Cushion Warranty: 36-month limited manufacturer’s warranty

Cover Warranty: 6-month limited manufacturer’s warranty

What Is Included?

• ROHO QUADTRO SELECT Mid Profile Cushion in the selected size
• Removable cushion cover
• ROHO hand inflation pump
• ROHO cushion repair kit
• Product operation and setup instructions

Package contents and cover style may vary depending on the selected cushion configuration. Review the chosen size and cover option before placing an order.

Frequently Asked Questions

What is the ROHO QUADTRO SELECT Mid Profile Cushion?

The ROHO QUADTRO SELECT Mid Profile is an adjustable wheelchair seat cushion made with interconnected air cells. It has four separate air compartments and an ISOFLO Memory Control for managing inflation, pressure redistribution, stability, and positioning.

How tall are the Mid Profile air cells?

The air cells measure approximately 3.25 inches high when the cushion is unloaded. The actual seated height depends on the inflation setting, cushion size, seating configuration, and distribution of weight across the cushion.

How does the Mid Profile model differ from the High Profile model?

The Mid Profile cushion has approximately 3.25-inch cells, while the High Profile version has approximately 4.25-inch cells. The Mid Profile model provides a lower overall seating height and slightly less maximum immersion.

How does the Mid Profile model differ from the Low Profile model?

The Mid Profile cushion has approximately 3.25-inch cells, compared with approximately 2.25-inch cells on the Low Profile model. The additional cell height provides greater immersion while retaining a lower profile than the High Profile version.

What does the ISOFLO Memory Control do?

The ISOFLO Memory Control opens or closes airflow between the cushion’s four compartments. When open, air can move throughout the entire cushion. When closed, air remains contained within the individual compartments to help maintain the established positioning and stability.

What do the green and red ISOFLO settings mean?

Green indicates that the ISOFLO control is open and air can flow between the compartments. Red indicates that the control is closed and air is contained within the four individual sections.

Can each compartment be adjusted separately?

Yes. After the cushion is properly inflated, air can be redistributed between the four compartments before the ISOFLO control is closed. Cushion positioning adjustments should follow the manufacturer’s setup instructions or the recommendations of a qualified seating professional.

How is the cushion inflated?

The cushion is inflated with a compatible ROHO hand pump. The ISOFLO control should be placed in the open position before inflation so that air can enter all four compartments. The inflation level is then adjusted using the hand-check procedure described in the product instructions.

How often should the inflation level be checked?

The inflation level should be checked regularly. Permobil recommends performing a hand check daily and readjusting the amount of air when needed.

How do I select the correct cushion size?

Measure the wheelchair’s usable seat width and depth, then compare those measurements with the available cushion dimensions. The cushion should fit securely on the seating surface without being compressed by the wheelchair frame or extending into an unsuitable position.

Can this cushion be used with a manual wheelchair?

The cushion may be used with a compatible manual wheelchair when the selected width, depth, height, and seating configuration fit correctly.

Can this cushion be used with a power wheelchair?

The cushion may be used with compatible power wheelchair seating systems. The wheelchair seat dimensions, cushion height, seat upholstery, and other seating components should be reviewed before choosing a size.

Is a cushion cover available?

Yes. The QUADTRO SELECT is available with compatible cover options, including a two-way stretch cover and a heavy-duty cover. The available cover may depend on the selected product configuration.

How do I clean the cushion?

The cushion may be washed with soap and water according to the instructions supplied by Permobil. The cover should be removed and cleaned separately. The cushion and cover should be completely dry before they are reassembled and placed back on the wheelchair.

Can a puncture be repaired?

Some small punctures may be repaired with an approved ROHO repair kit. Damage to the valve, ISOFLO control, seams, or larger areas of the cushion may require additional evaluation or replacement.

What warranty is included?

The neoprene air cushion is covered by a 36-month limited manufacturer’s warranty. The cushion cover is covered by a 6-month limited manufacturer’s warranty. Coverage remains subject to the manufacturer’s current warranty requirements and exclusions.
